WOODRIAN MAX

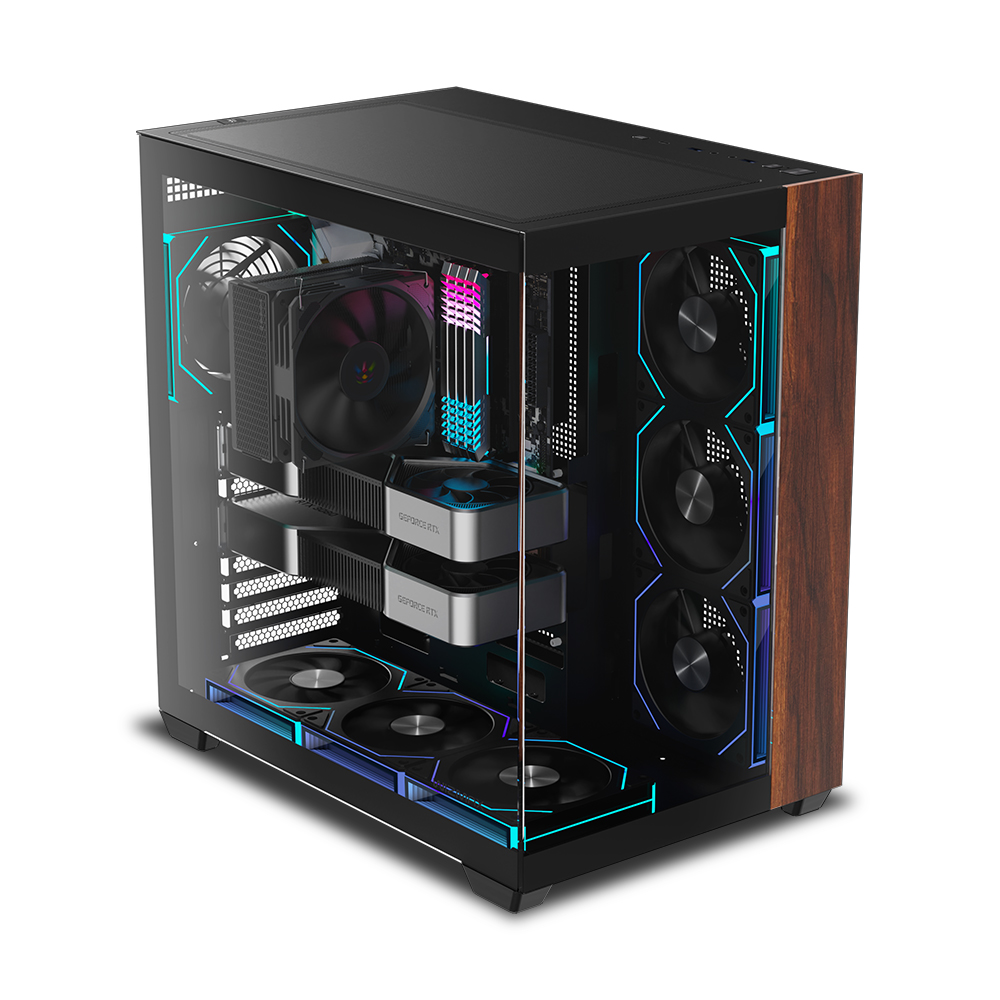

WOODRIAN MAX - Image 1

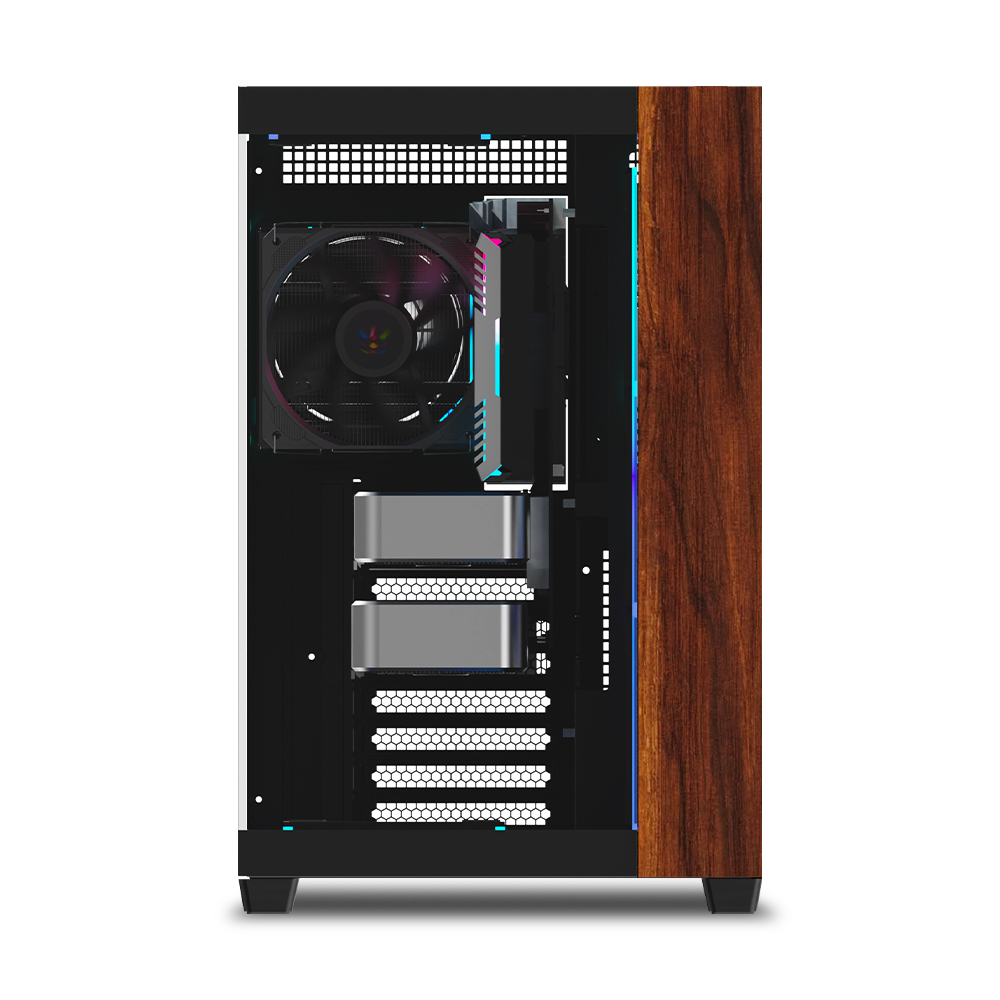

WOODRIAN MAX - Image 2
WOODRIAN MAX - Image 3

WOODRIAN MAX

PC Cases

Available Colors:

BLACK
ATX, M-ATX, ITX Water Cooling Support

Experience the exceptional performance and reliability of WIZMAX PC Cases. Designed for optimal functionality and durability, this product delivers superior quality for all your computing needs.

WOODRIAN MAX Detail

General Specifications

Motherboard Support
ATX, M-ATX, ITX
PSU Form Factor
ATX, M-ATX
Dimensions
425(D) x 285(W) x 448(H)mm
Max VGA Length
Up to 410mm, PCI slot 9ea
Max CPU Cooler Height
Up to 160mm

Storage & Cooling

Drive Bays
2.5 SSD x3(MAX), 3.5 HDD x2(MAX)
Cooler Specifications
Top: 120mm x3(Optional) / 140mm x2(Optional)
Rear: 120mm HDB aRGB PWM x1(Included) / 140mm x1(Optional)
Bottom: 120mm x3(Optional)
Side: 120mm HDB aRGB PWM x1(Included) / 140mm x1(Optional)
Water Cooling Support
Top/Side: 240, 280, 360mm Bottom: 240, 360mm
WOODRIAN MAX - Gallery Image 1
WOODRIAN MAX - Gallery Image 2
WOODRIAN MAX - Gallery Image 3
💧

Water Cooling Support

This case is designed with comprehensive water cooling support, allowing for radiator mounting in multiple positions for advanced cooling solutions.
