WIZMAX G 80plus Gold

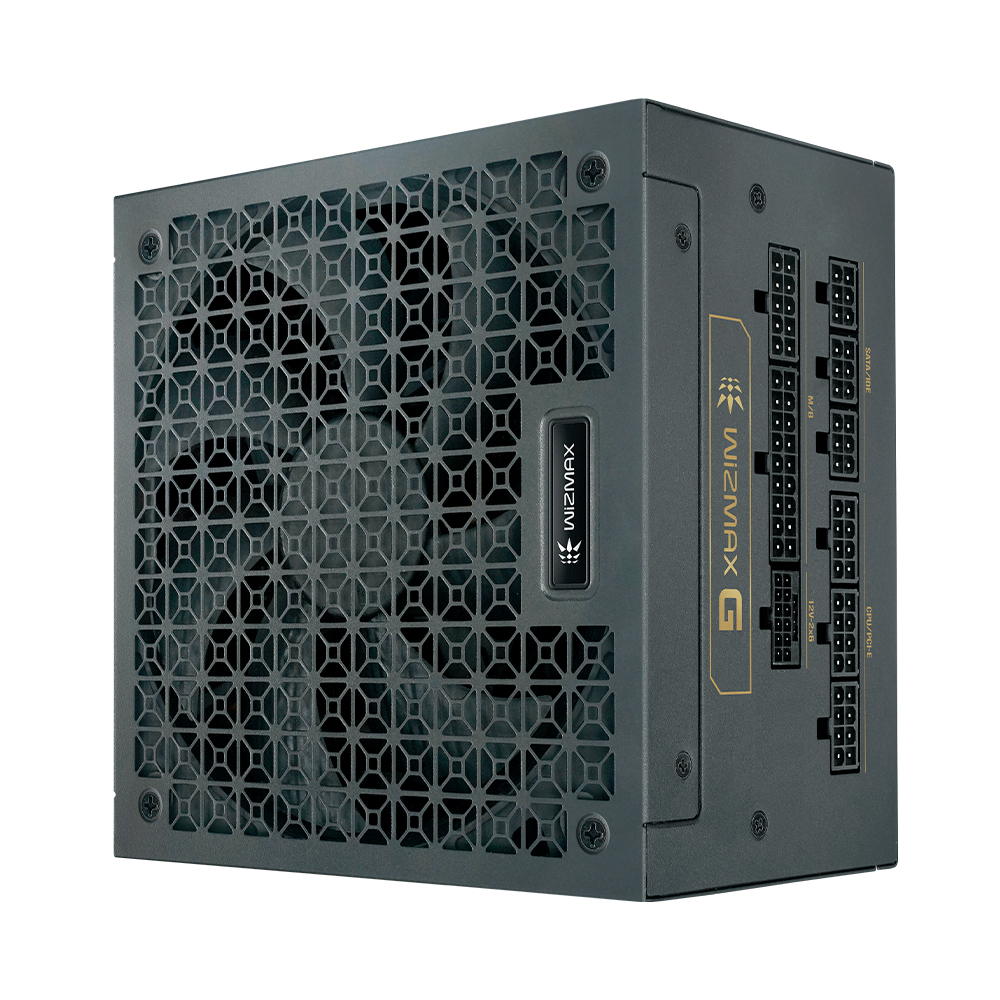

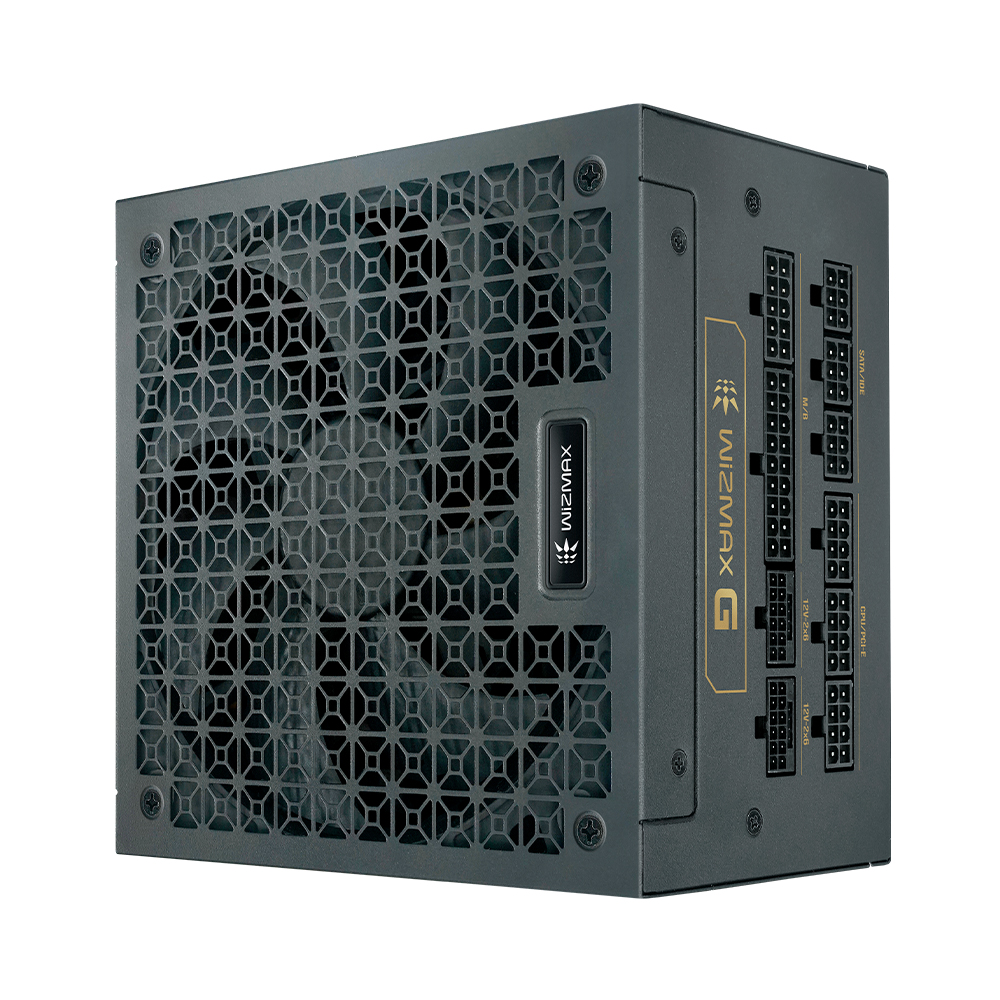

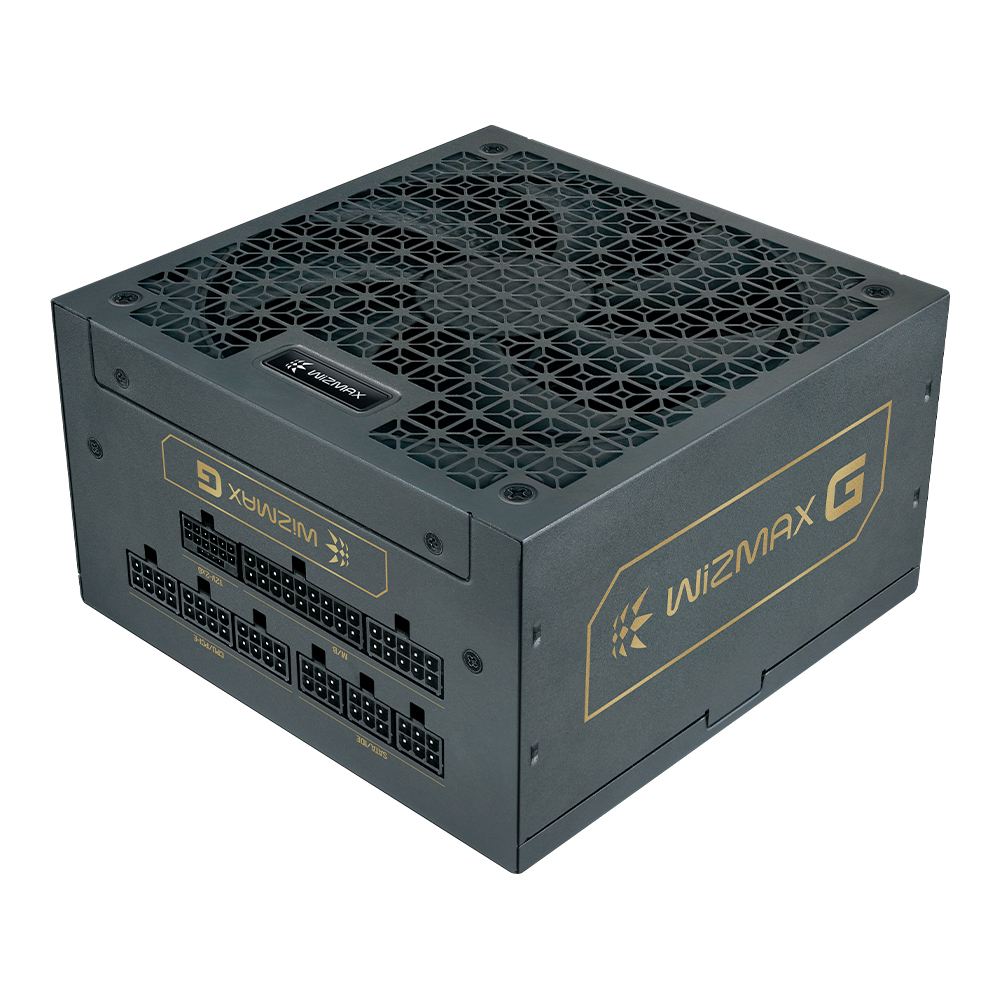

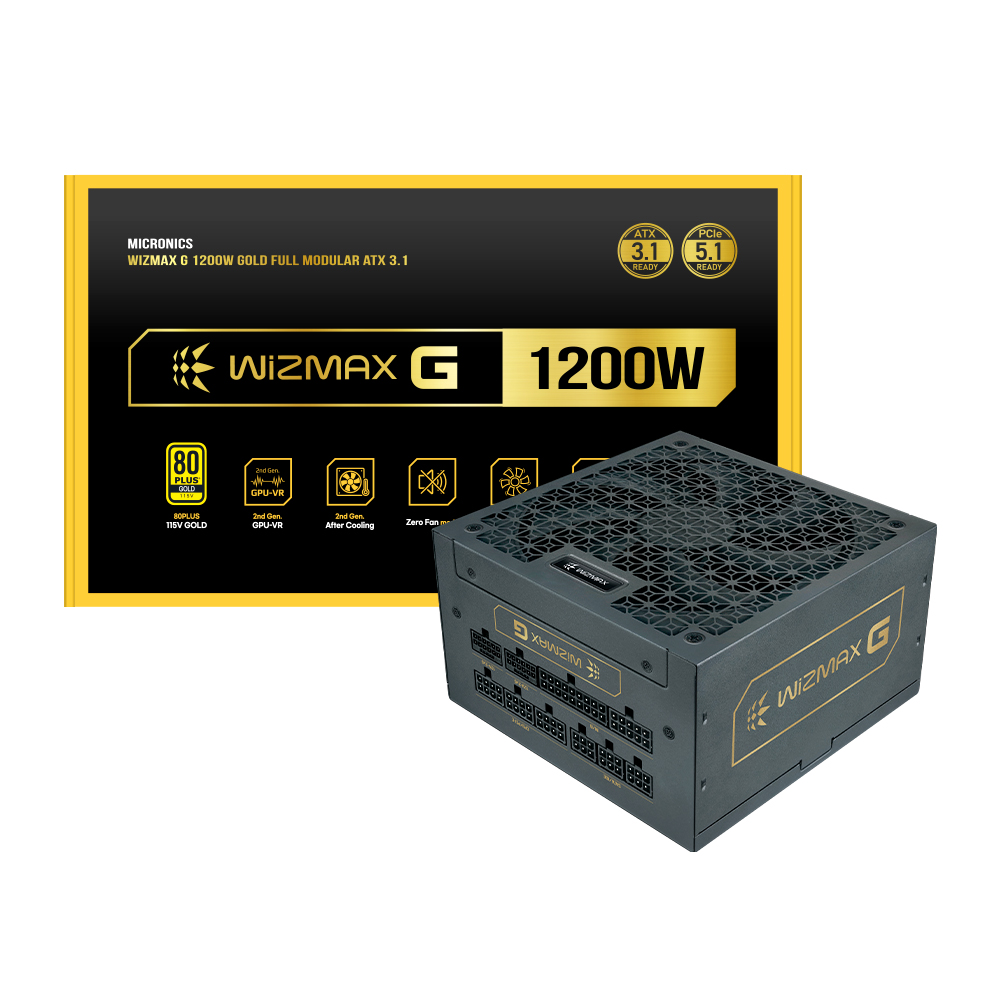

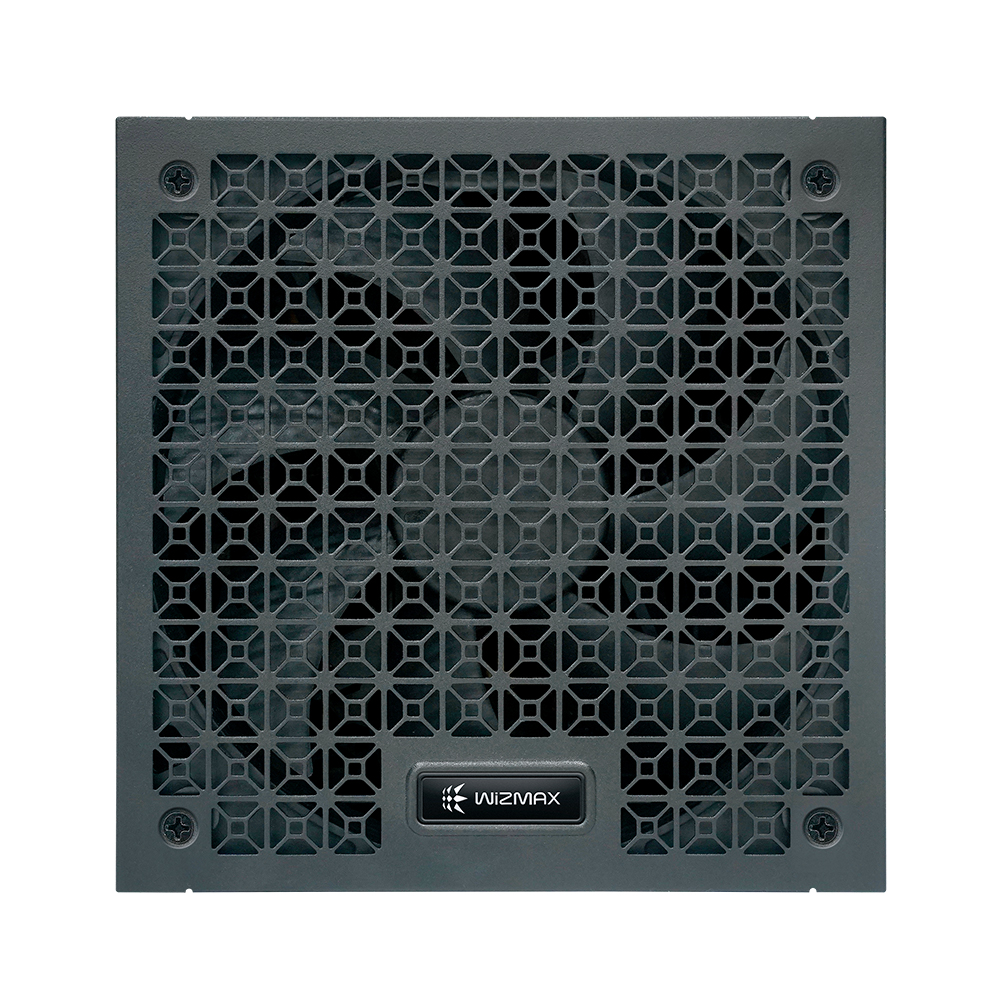

WIZMAX G 80plus Gold - Image 1
WIZMAX G 80plus Gold - Image 2
WIZMAX G 80plus Gold - Image 3
WIZMAX G 80plus Gold - Image 4
WIZMAX G 80plus Gold - Image 5
WIZMAX G 80plus Gold - Image 6
WIZMAX G 80plus Gold - Image 7
WIZMAX G 80plus Gold - Image 8

WIZMAX G 80plus Gold

PSU

Available Colors:

BLACK
GOLD Full Modular ATX12V

Experience the exceptional performance and reliability of WIZMAX PSU. Designed for optimal functionality and durability, this product delivers superior quality for all your computing needs.

WIZMAX G 80plus Gold Detail

General Specifications

80 PLUS Certification
GOLD
Form Factor
ATX12V
Modularity
Full Modular
Dimensions
150mm(W) x 150mm(D) X 86mm(H)

Fan Specifications

Fan Size
140mm
Fan Bearing
Fluid Dynamic Bearing

Connectors & Cables

Cable Type
Mash Pattern / Black
Main Connector
850/1000/1200W : x1(610mm)
CPU 4+4 PIN
850/1000/1200W : x2(650mm)
PCI-E 6+2 PIN
1000W : x2 (675mm) I 850/1200W : x1 (675mm)
Sata
850/1000/1200W : x8 (400mm + 115mm +115mm + 115mm)
Ide
850/1000/1200W : x4 (400mm + 115mm +115mm + 115mm)
Op Temp
~50°C
Protection
OVP, UVP, OPP, SCP, OTP, OCP, SIP, NLO
Certification
KC, ErP Lot 6, RoHS
Voltage
100-240 V~ / 200-240 V~(Korea only)
Current
850W : 10-6 A / 6 A(Korea only) I 1000/1200W : 15-8 A / 8 A(Korea only)
Frequency
50-60 Hz
Rail
+5V, +3.3V, +12V, -12V, -12V, +5Vsb, +5V & +3.3V
Max Power
850W(25A, 25A, 70.8A, 0.8A, 3A, 130W) I 1000W(25A, 25A, 83.3A, 0.8A, 3A, 130W) I 1200W(25A, 25A, 100A, 0.8A, 3A, 130W)
Total Power
850W I 1000W I 1200W
WIZMAX G 80plus Gold - Gallery Image 1
WIZMAX G 80plus Gold - Gallery Image 2
WIZMAX G 80plus Gold - Gallery Image 3
WIZMAX G 80plus Gold - Gallery Image 4
WIZMAX G 80plus Gold - Gallery Image 5
WIZMAX G 80plus Gold - Gallery Image 6
WIZMAX G 80plus Gold - Gallery Image 7
WIZMAX G 80plus Gold - Gallery Image 8
⚡

80 PLUS Gold Certification

High efficiency power supply with 80 PLUS Gold certification ensures optimal power delivery and reduced energy waste, leading to lower electricity bills and cooler operation.

🔌

Fully Modular Design

The fully modular cable design allows you to use only the cables you need, reducing cable clutter and improving airflow inside your case for better cooling performance.
