WIZMAX SILVER

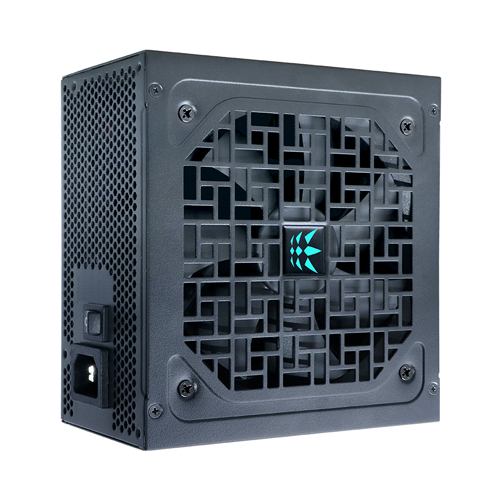

WIZMAX SILVER - Image 1
WIZMAX SILVER - Image 2

WIZMAX SILVER

PSU
SILVER Fixed Cables ATX12V

Experience the exceptional performance and reliability of WIZMAX PSU. Designed for optimal functionality and durability, this product delivers superior quality for all your computing needs.

General Specifications

80 PLUS Certification
SILVER
Form Factor
ATX12V
Modularity
Fixed Cables
Dimensions
150mm(W) x 140mm(D) X 86mm(H)

Fan Specifications

Connectors & Cables

Main Connector
x1 (550mm)
PCI-E 6+2 PIN
x2 (450mm + 150mm)
Sata
x8 (450mm + 150mm +150mm + 150mm)
Ide
x4 (450mm + 150mm)
Op Temp
~50°C
Protection
SURGE 4K, ESD 15K, OVP, UVP, OPP, SCP, OTP, SIP, NLO
Certification
KC, ErP Lot 6, RoHS
Voltage
110-240V~
Current
15-6A
Frequency
50~60Hz
Rail
+5V, +3.3V, +12V, -12V, +5Vsb
Max Power
22A, 22A, 70.8A, 0.3A, 3A
Total Power
120W, 850W, 3.6W, 15W 850W
WIZMAX SILVER - Gallery Image 1
WIZMAX SILVER - Gallery Image 2

This product offers a range of features designed for optimal performance. Please see the specifications tab for detailed information.
