WIZMAX GOLD

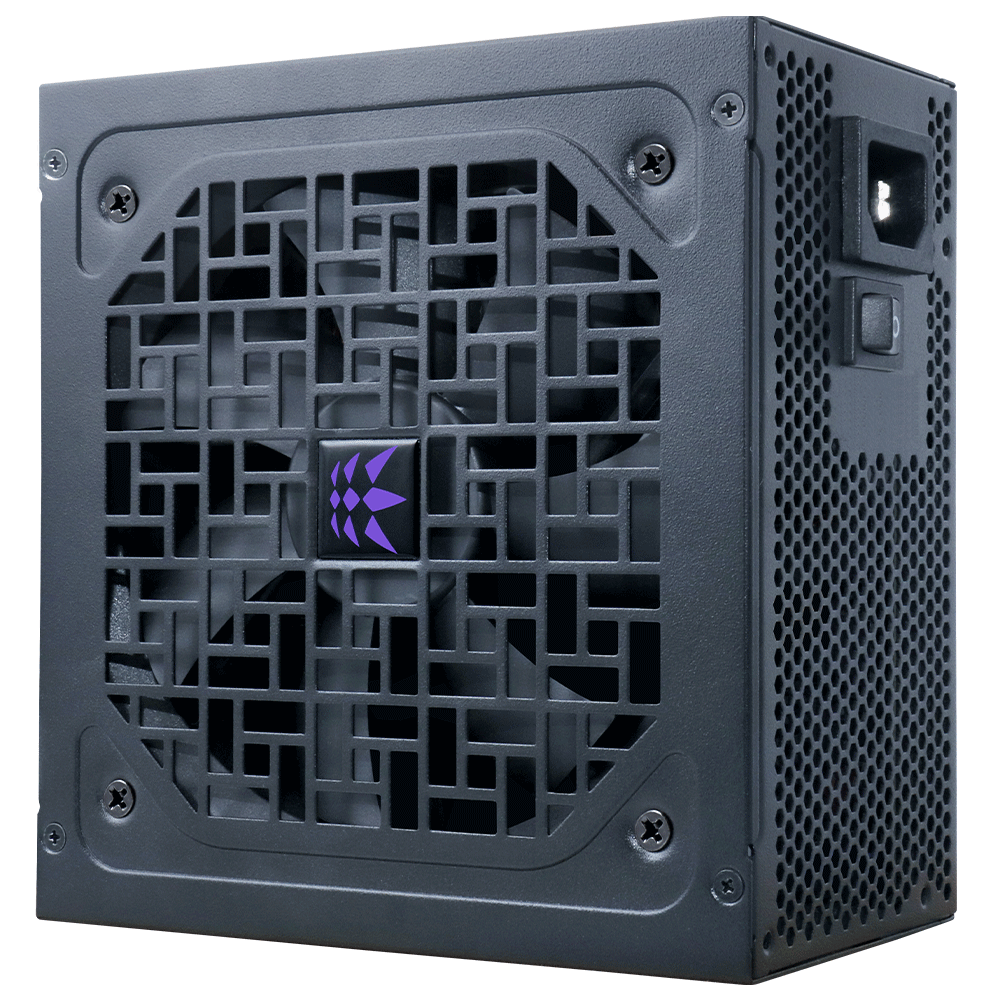

WIZMAX GOLD - Image 1

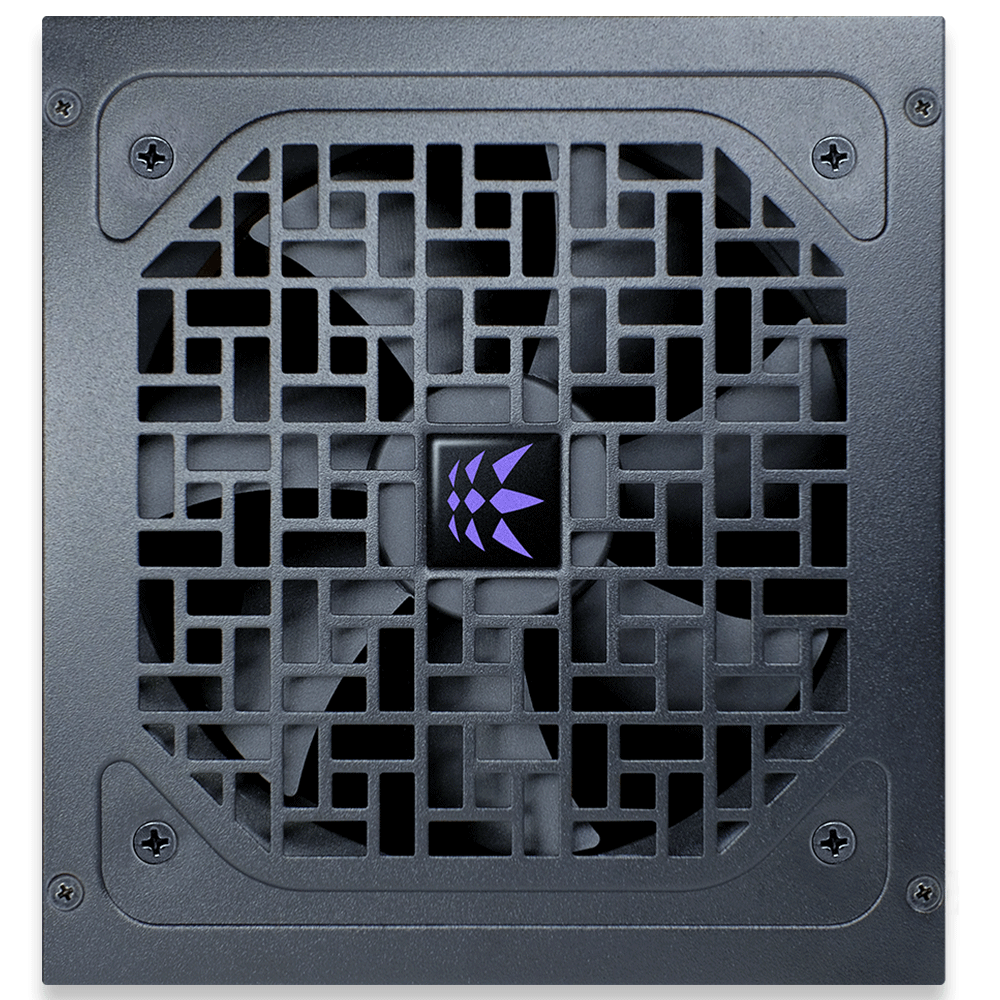

WIZMAX GOLD - Image 2

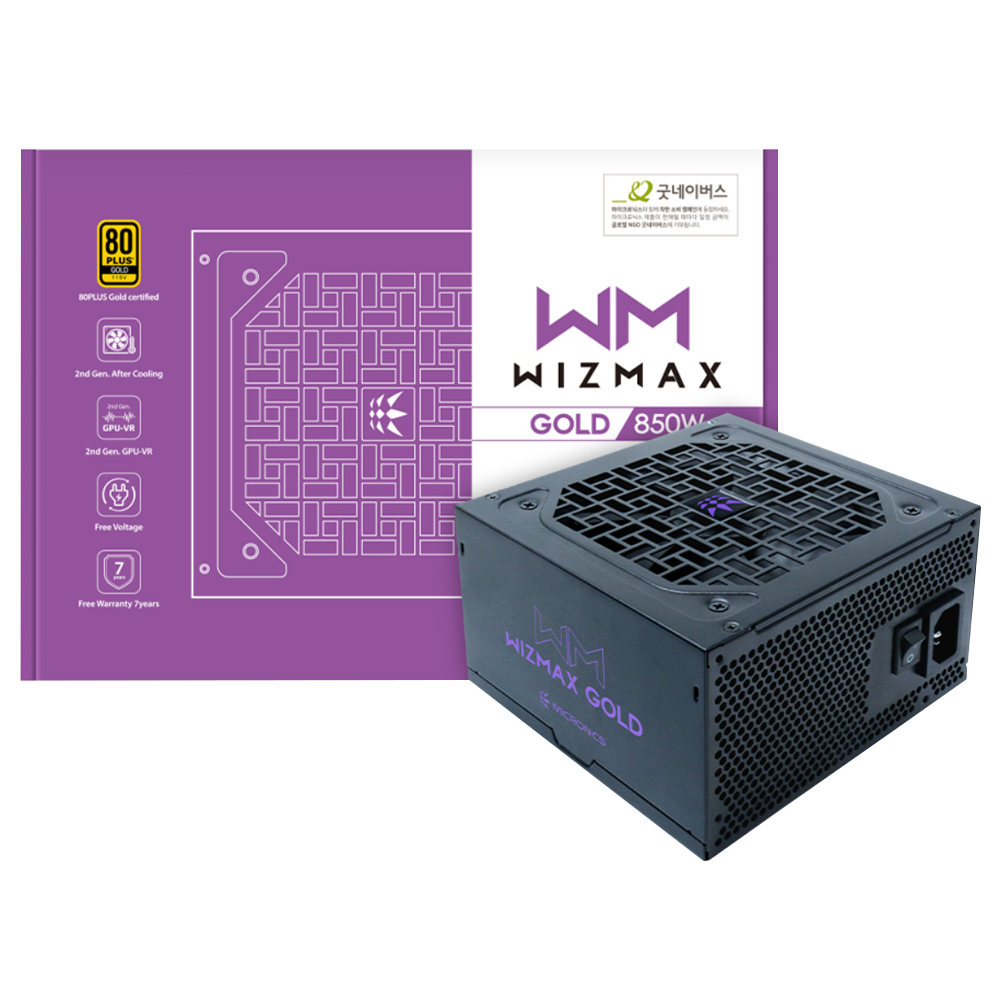

WIZMAX GOLD - Image 3
WIZMAX GOLD - Image 4

WIZMAX GOLD

PSU
GOLD Fixed Cables ATX12V

Power Unleashed, Efficiency Perfected.

Experience the exceptional performance and reliability of WIZMAX PSU. Designed for optimal functionality and durability, this product delivers superior quality for all your computing needs.

General Specifications

80 PLUS Certification
GOLD
Form Factor
ATX12V
Modularity
Fixed Cables
Dimensions
150mm(W) x 140mm(D) X 86mm(H)

Fan Specifications

Connectors & Cables

Main Connector
x1 (550mm)
PCI-E 6+2 PIN
x2 (450mm + 150mm)
Sata
x8 (450mm + 150mm +150mm + 150mm)
Ide
x4 (450mm + 150mm)
Op Temp
~50°C
Protection
SURGE 4K, ESD 15K, OVP, UVP, OPP, SCP, OTP, SIP, NLO
Certification
KC, ErP Lot 6, RoHS
Voltage
105-240V~
Current
15-6A
Frequency
50~60Hz
Rail
+5V, +3.3V, +12V, -12V, +5Vsb
Max Power
22A, 22A, 70.8A, 0.3A, 3A
Total Power
120W, 850W, 3.6W, 15W 850W
WIZMAX GOLD - Gallery Image 1
WIZMAX GOLD - Gallery Image 2
WIZMAX GOLD - Gallery Image 3
WIZMAX GOLD - Gallery Image 4
⚡

80 PLUS Gold Certification

High efficiency power supply with 80 PLUS Gold certification ensures optimal power delivery and reduced energy waste, leading to lower electricity bills and cooler operation.
