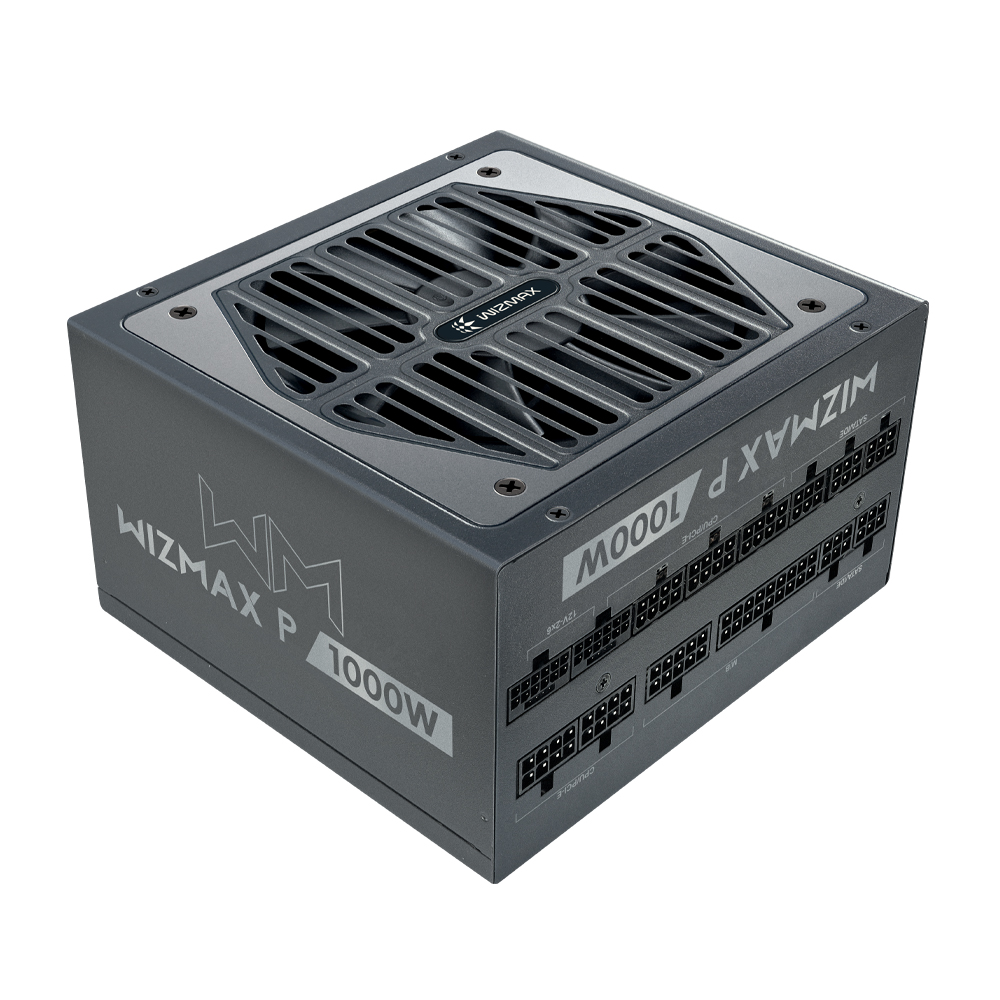

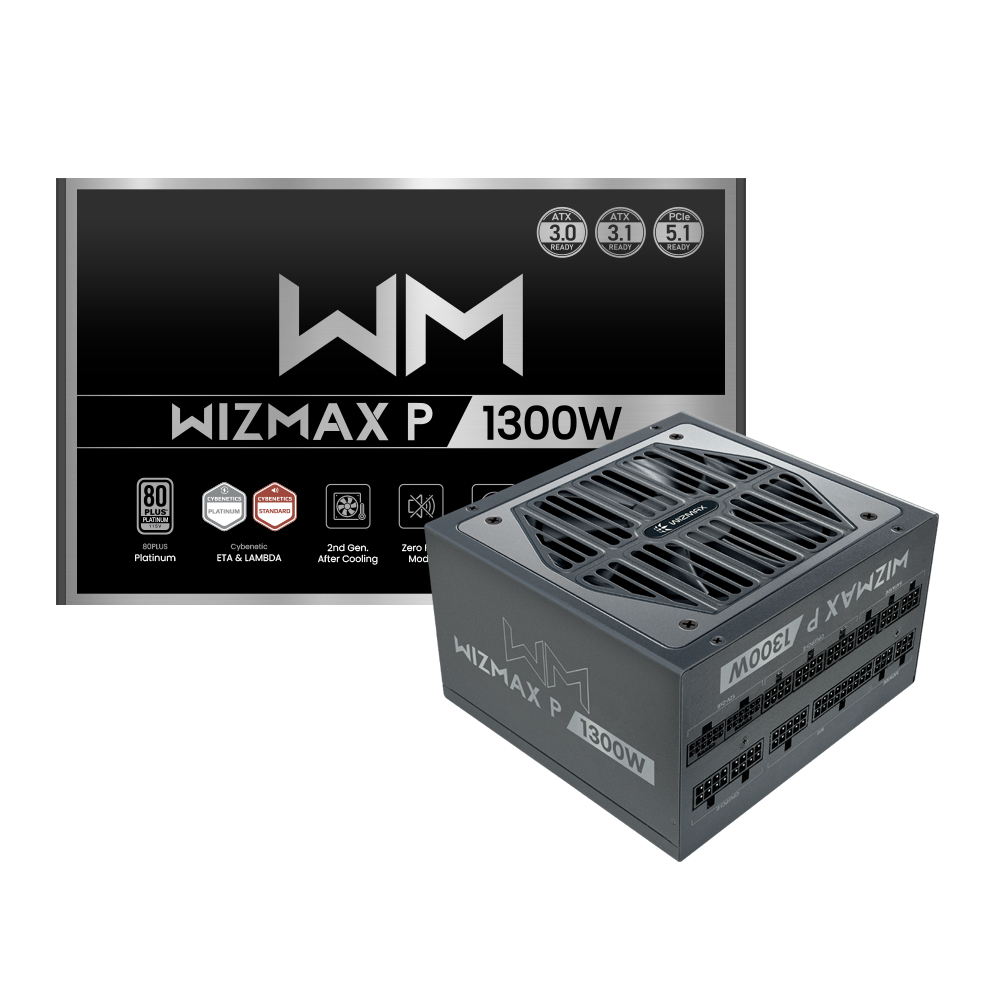

WIZMAX P 80plus Platinum
WIZMAX P 80plus Platinum - Image 1
WIZMAX P 80plus Platinum - Image 2
WIZMAX P 80plus Platinum - Image 3
WIZMAX P 80plus Platinum - Image 4
WIZMAX P 80plus Platinum - Image 5
WIZMAX P 80plus Platinum - Image 6
WIZMAX P 80plus Platinum - Image 7

WIZMAX P 80plus Platinum

PSU

Available Colors:

BLACK
115V PLATINUM Full Modular ATX12V

Experience the exceptional performance and reliability of WIZMAX PSU. Designed for optimal functionality and durability, this product delivers superior quality for all your computing needs.

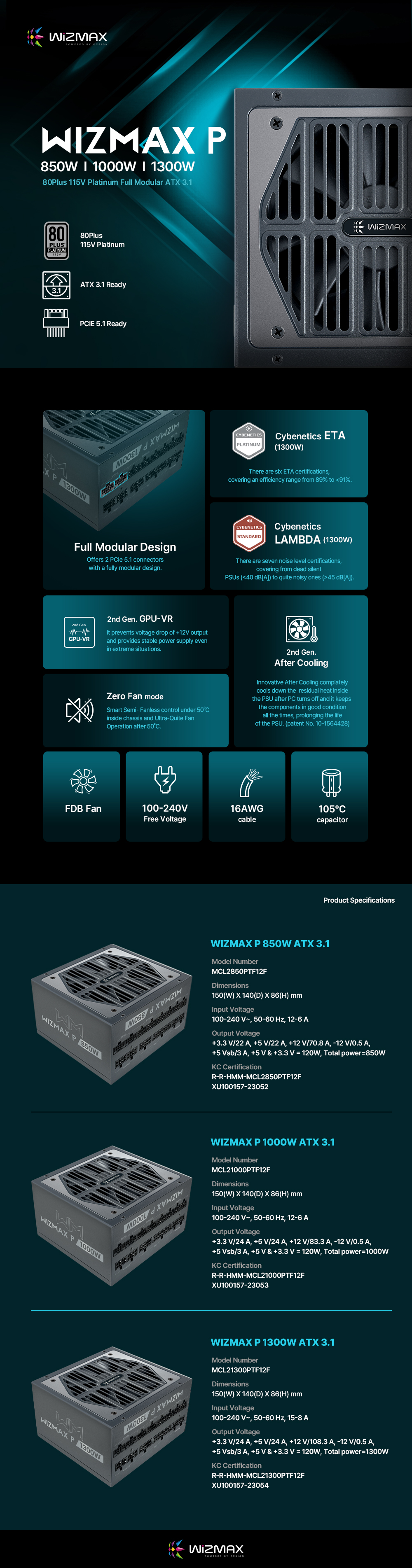

WIZMAX P 80plus Platinum Detail

General Specifications

80 PLUS Certification
115V PLATINUM
Form Factor
ATX12V
Modularity
Full Modular
Dimensions
150mm(W) x 140mm(D) X 86mm(H)

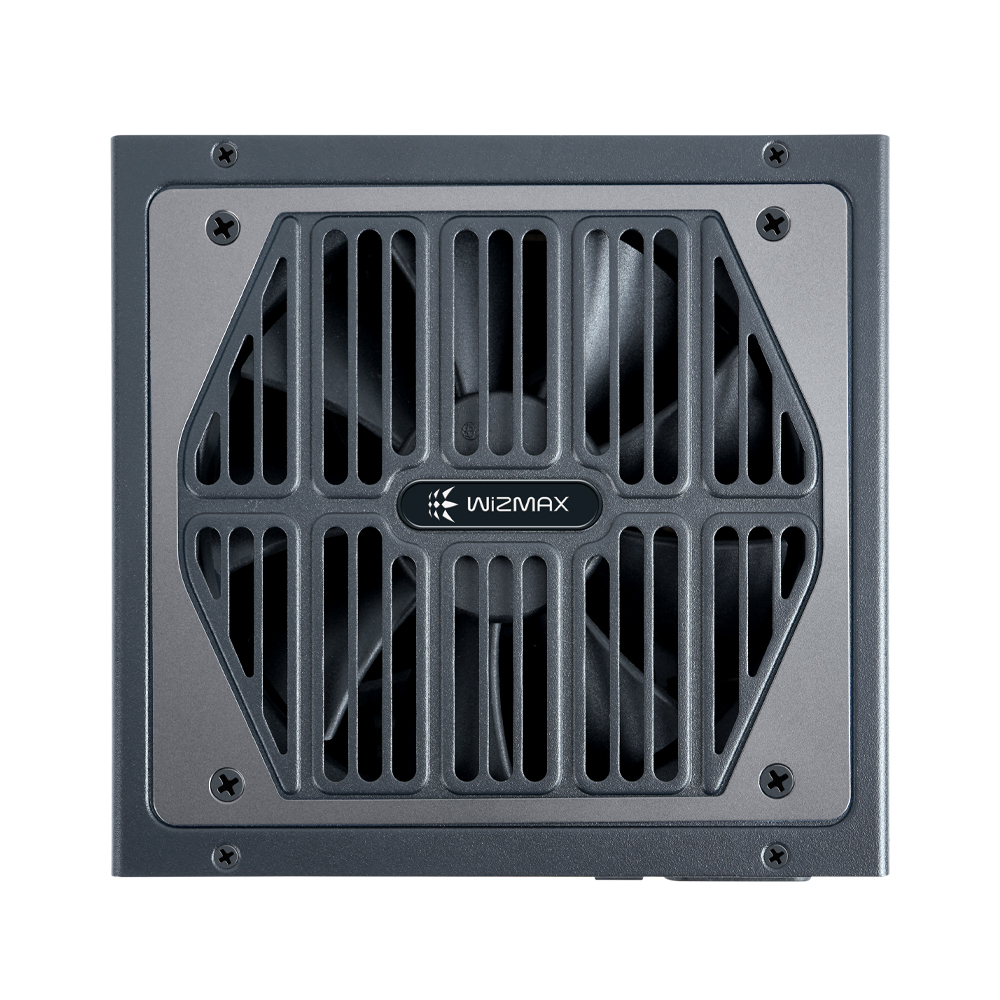

Fan Specifications

Fan Size
120mm
Fan Bearing
Fluid Dynamic Bearing

Connectors & Cables

Cable Type
Flat/Black
Main Connector
850/1000/1300W : x1(600mm)
PCI-E 6+2 PIN
850/1000/1300W : x3(600mm)
Sata
850W : x8(500mm+150mm+150mm+150mm) I 1000/1300W : x10(500mm+150mm+150mm+150mm)
Ide
850/1000/1300W : x4(500mm+150mm+150mm+150mm)
Fdd
850/1000/1300W : x1(100mm)
Op Temp
~50°C
Certification
KC, ErP Lot 6, RoHS
Voltage
100 - 240 V~
Current
850/1000W : 12-6 A I 1300W : 15-8 A
Frequency
50~60Hz
Rail
+3.3 V, +5 V, +12 V, -12 V, +5 Vsb, +5 V & +3.3 V
Max Power
850W : 22A, 22A, 70.8A, 0.5A, 3A, 120W I 1000W : 24A, 24A, 83.3A, 0.5A, 3A, 120W I 1300W : 24A, 24A, 108.3A, 0.5A, 3A, 120W
Total Power
850W I 1000W I1300W
WIZMAX P 80plus Platinum - Gallery Image 1
WIZMAX P 80plus Platinum - Gallery Image 2
WIZMAX P 80plus Platinum - Gallery Image 3
WIZMAX P 80plus Platinum - Gallery Image 4
WIZMAX P 80plus Platinum - Gallery Image 5
WIZMAX P 80plus Platinum - Gallery Image 6
WIZMAX P 80plus Platinum - Gallery Image 7
⚡

80 PLUS Platinum Certification

Premium efficiency with 80 PLUS Platinum certification provides exceptional power delivery efficiency, minimizing energy loss and heat generation even under heavy loads.

🔌

Fully Modular Design

The fully modular cable design allows you to use only the cables you need, reducing cable clutter and improving airflow inside your case for better cooling performance.
