WIZMAX SWING
WIZMAX SWING - Image 1
WIZMAX SWING - Image 2
WIZMAX SWING - Image 3

WIZMAX SWING

PSU

Available Colors:

BLACK
115V GOLD Full Modular ATX12V

Experience the exceptional performance and reliability of WIZMAX PSU. Designed for optimal functionality and durability, this product delivers superior quality for all your computing needs.

WIZMAX SWING Detail

General Specifications

80 PLUS Certification
115V GOLD
Form Factor
ATX12V
Modularity
Full Modular
Dimensions
150mm(W) x 150mm(D) X 86mm(H)

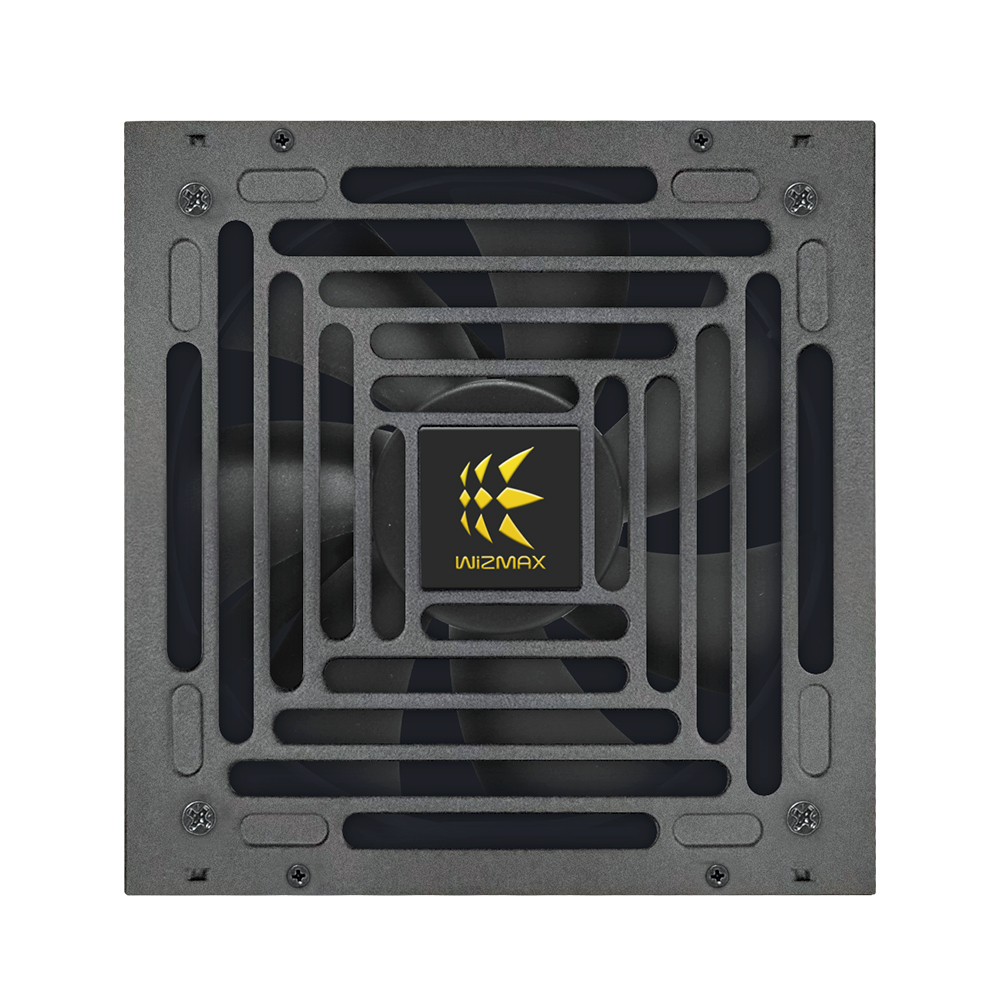

Fan Specifications

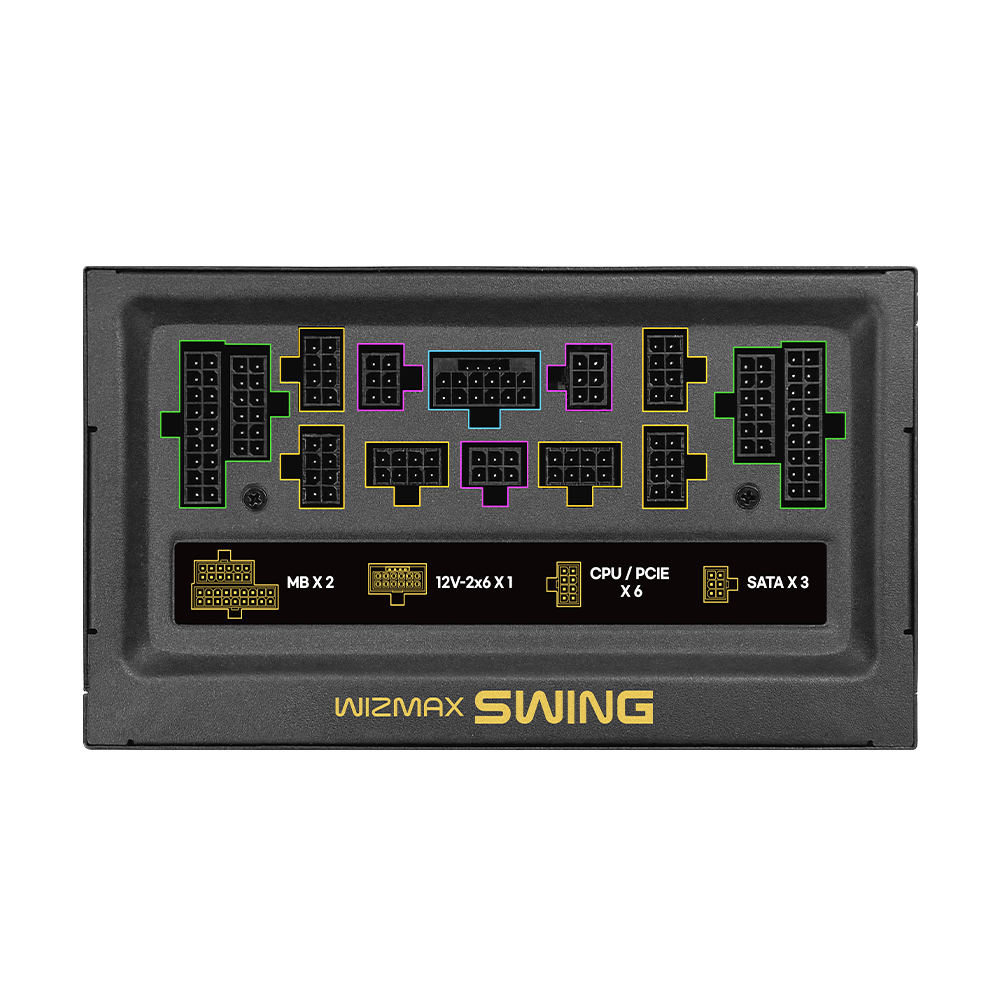

Connectors & Cables

Cable Type
Flat/Black
Main Connector
x1 (600mm)
CPU 4+4 PIN
x2 (650mm)
PCI-E 6+2 PIN
6+2 PIN : x2 (600mm) / (6+2)+(6+2) PIN : x2 (00mm + 150mm)
Sata
x10 (500mm + 150mm +150mm + 150mm)
Ide
x2 (500mm + 150mm)
Op Temp
~50°C
Certification
ErP Lot 6, RoHS
Voltage
100-240 V~
Current
15-8 A
Frequency
50~60Hz
Rail
+5V, +3.3V, +12V, -12V, +5Vsb, +5V & +3.3V
Max Power
850W : 20 A, 20 A, 70.8 A, 0.3 A, 3 A, 100 W I 1200W : 20 A, 20 A, 100 A, 0.3 A, 3 A, 100 W
Total Power
850 W I 1200 W
WIZMAX SWING - Gallery Image 1
WIZMAX SWING - Gallery Image 2
WIZMAX SWING - Gallery Image 3
⚡

80 PLUS Gold Certification

High efficiency power supply with 80 PLUS Gold certification ensures optimal power delivery and reduced energy waste, leading to lower electricity bills and cooler operation.

🔌

Fully Modular Design

The fully modular cable design allows you to use only the cables you need, reducing cable clutter and improving airflow inside your case for better cooling performance.
