WIZMAX P-2500W 80plus Platinum

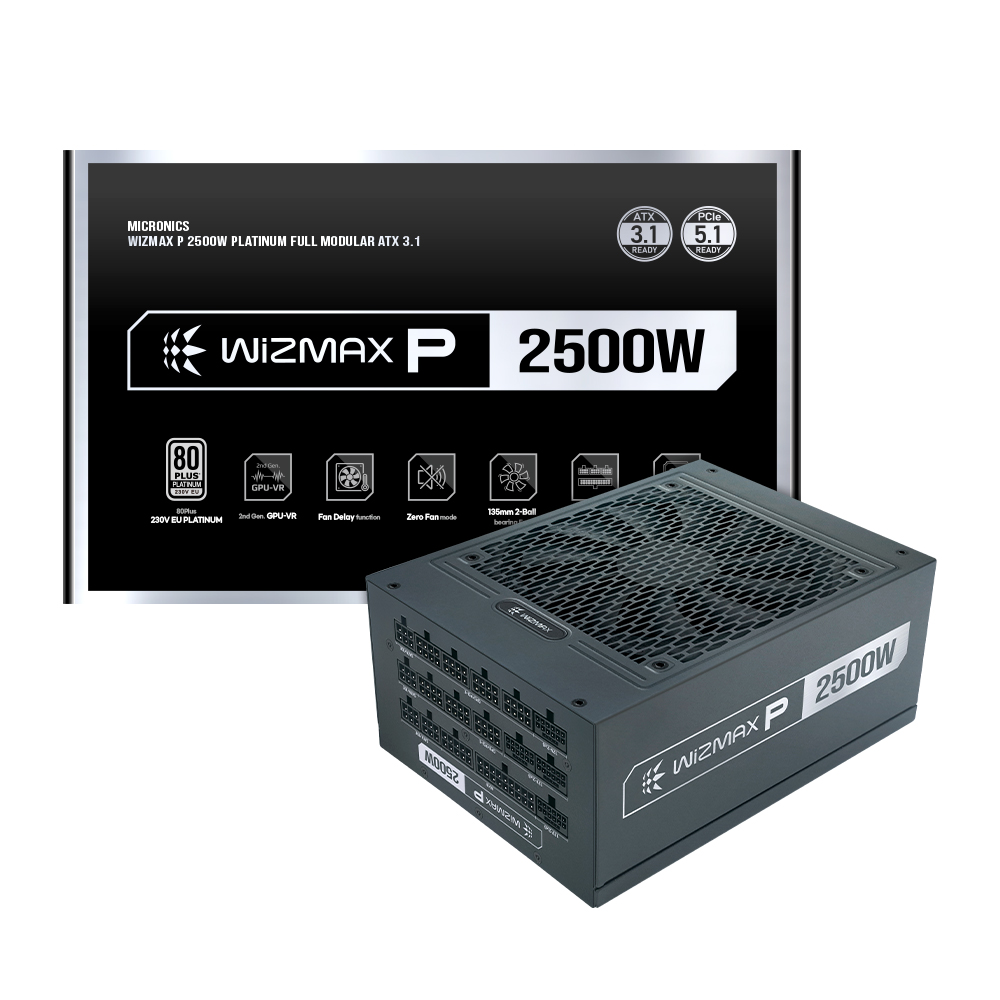

WIZMAX P-2500W 80plus Platinum - Image 1

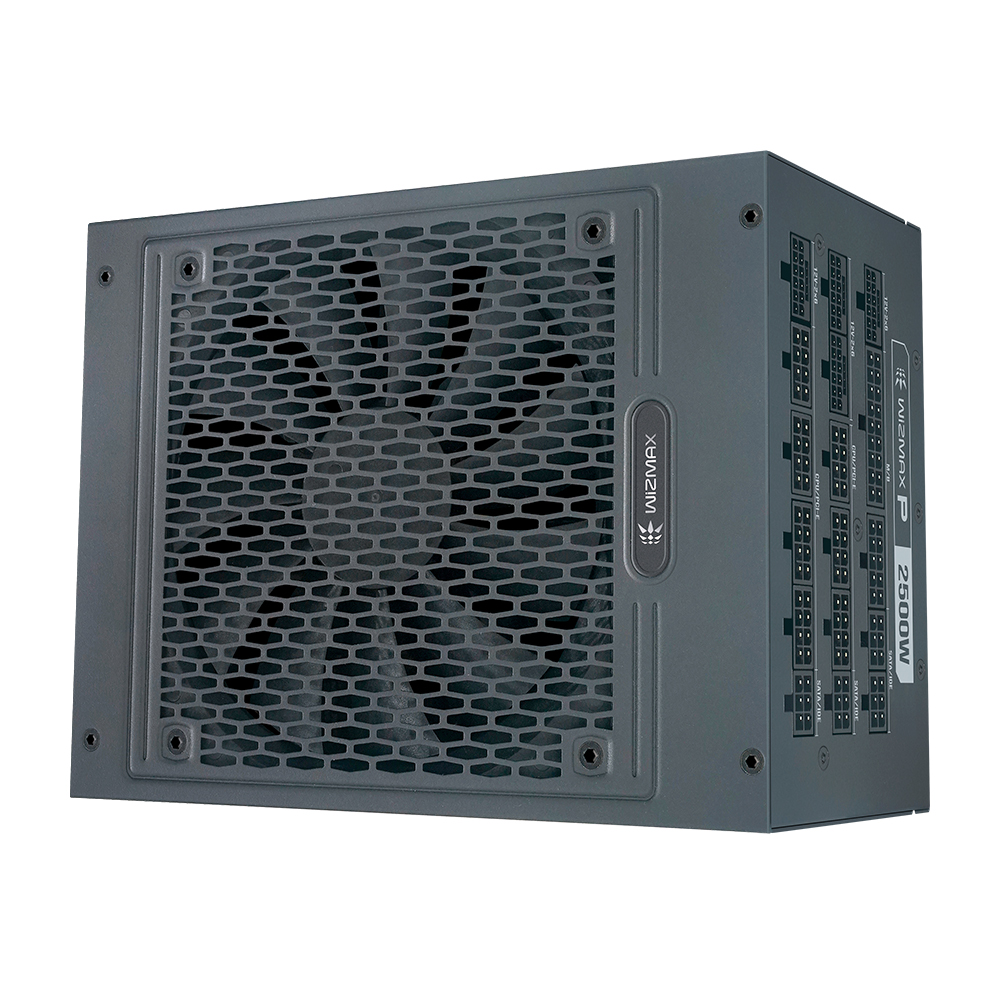

WIZMAX P-2500W 80plus Platinum - Image 2

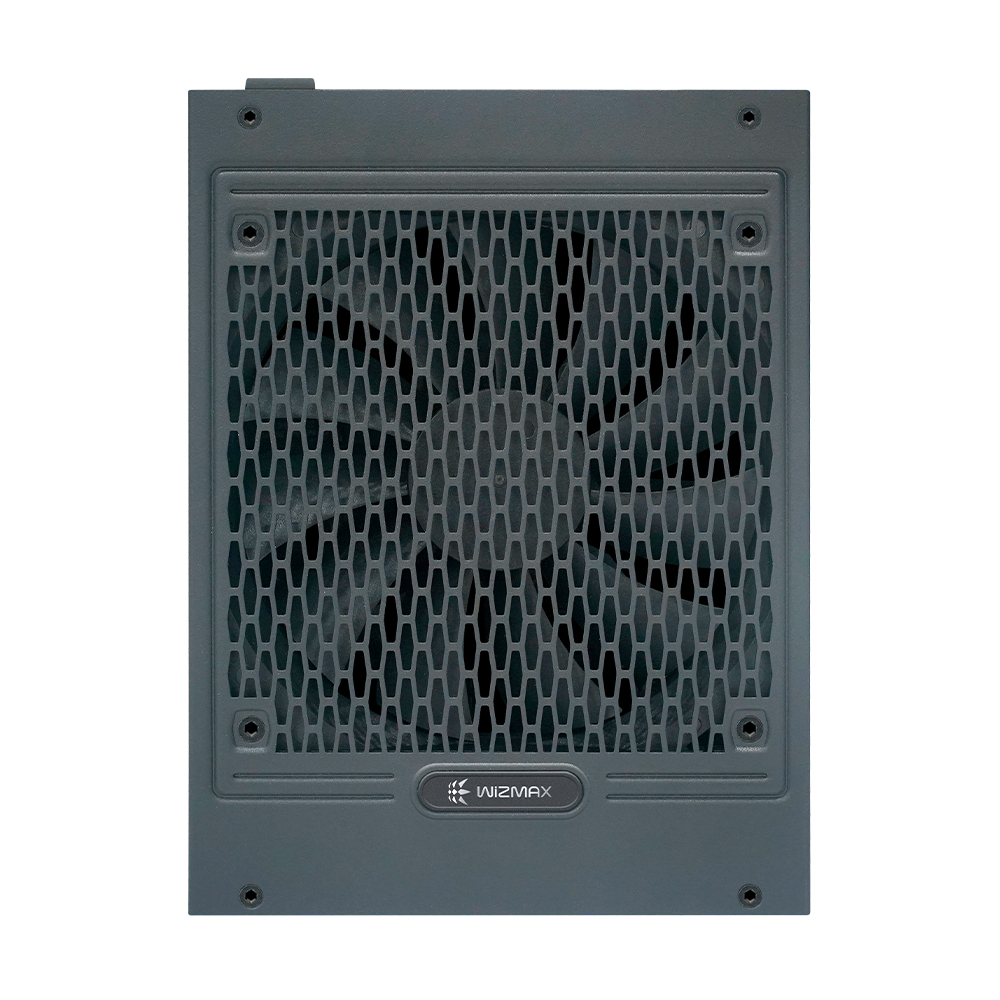

WIZMAX P-2500W 80plus Platinum - Image 3
WIZMAX P-2500W 80plus Platinum - Image 4

WIZMAX P-2500W 80plus Platinum

PSU

Available Colors:

BLACK
80PLUS 230V EU PLATINUM Full Modular ATX12V

Experience the exceptional performance and reliability of WIZMAX PSU. Designed for optimal functionality and durability, this product delivers superior quality for all your computing needs.

WIZMAX P-2500W 80plus Platinum Detail

General Specifications

80 PLUS Certification
80PLUS 230V EU PLATINUM
Form Factor
ATX12V
Modularity
Full Modular
Dimensions
150mm(W) x 200mm(D) X 86mm(H)

Fan Specifications

Fan Size
135mm
Fan Bearing
2-Ball Bearing
Fan Lifespan
70,000 hours

Connectors & Cables

Cable Type
Flat/Black
Main Connector
x1 (600mm)
CPU 4+4 PIN
x2 (700mm)
PCI-E 6+2 PIN
(6+2)+(6+2)pin x2 (700+150mm) / (6+2)pin x3 (700mm)
Sata
x11 (550mm + 100mm +100mm + 100mm)
Ide
x4 (550mm + 100mm + 100mm + 100mm)
Op Temp
~50°C
Protection
OVP, UVP, OPP, OTP, OCP, SCP, NLO, SIP
Certification
ErP Lot 6 / RoHS
Voltage
200-240 V~
Current
15 A
Frequency
50 - 60 Hz
Rail
+5V, +3.3V, +12V, -12V, +5Vsb, +5V&+3.3V
Max Power
22 A, 22 A, 208.3 A, 0.5 A, 3 A, 120 W
Total Power
2500 W
WIZMAX P-2500W 80plus Platinum - Gallery Image 1
WIZMAX P-2500W 80plus Platinum - Gallery Image 2
WIZMAX P-2500W 80plus Platinum - Gallery Image 3
WIZMAX P-2500W 80plus Platinum - Gallery Image 4
⚡

80 PLUS Platinum Certification

Premium efficiency with 80 PLUS Platinum certification provides exceptional power delivery efficiency, minimizing energy loss and heat generation even under heavy loads.

🔌

Fully Modular Design

The fully modular cable design allows you to use only the cables you need, reducing cable clutter and improving airflow inside your case for better cooling performance.
